- Model : SUA3000I-IN
- Power Rating : 3000VA (3KVA)
- Output power Max : 2700Watts
- UPS Type : Line Interactive
- Waveform : Sine wave
- Battery Type : Built-in Battery
- Backup Time : 5Min to 180Min
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V
- Input Connections : IEC-320 C20
- Output Connections : IEC 320 C13 & C19
- Application : Computers and Mixed Load
- Warranty : 2 years repair or replacement
3KVA SUA3000I-IN Features
- Battery failure notification
-
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Resettable circuit breakers
-
Enables a quick recovery from overload events.
- Predictive failure notification.
-
Provides early-warning fault analysis ensuring proactive component replacement.
- Hot-swappable batteries
-
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- User-replaceable batteries
-
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic restart of loads after UPS shutdown
-
Automatically starts up the connected equipment upon the return of utility power.
- Temperature-compensated battery charging
-
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Disconnected battery notification
-
Warns when a battery is not available to provide backup power.
- Automatic self-test
-
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR)
-
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Power conditioning
-
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent battery management
-
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- LED status indicators
- Quickly understand unit and power status with visual indicators.
- Network manageable
- Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Audible alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Disconnected battery notification
- Warns when a battery is not available to provide backup power.
- USB connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Serial connectivity
- Provides management of the UPS via a serial port
3KVA SUA3000I-IN Technical Specifications

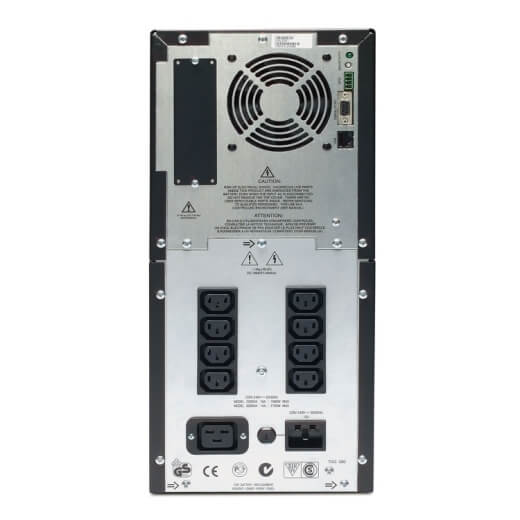

Rear Side Image : |
||||||||||||||||||||||||||||||||||||
|
|
