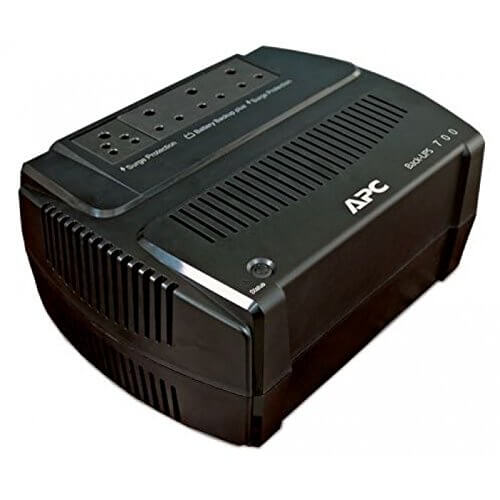

APC 700VA UPS - BE700Y-IND

  • Model : BE700Y-IND
  • Power Rating : 700VA
  • Output power Max : 420Watts
  • UPS Type  : Line Interactive
  • Waveform : Stepped Sine wave
  • Battery Type  : Built-in Battery
  • Backup Time  : 2.8Min to 52Min
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : India 3-pin 6A Cord
  • Output Connections  : India 5-pin Sockets
  • Application  : Computers and Electronics
  • Warranty  : 2 years repair or replacement

BE700Y-IND Features


  • Audible alarms
    Provides notification of changing utility power and UPS power conditions
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • LED Indicators
    Provide easy-to-read status of the unit and utility power conditions.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

BE700Y-IND Technical Specifications


Power Rating  700VA
Max Configurable Power (Watts)  420Watts
Output Frequency (sync to mains)  47 - 63 Hz
Topology  Line Interactive
Output Waveform type  Stepped approximation to a sinewave
Nominal Input Voltage
 230V AC
Input frequency
 47 - 63 Hz
Input voltage range for mains  167 Vac to 280 Vac
Nominal Output Voltage  230V AC
Battery Type
 RBC17 - Inbuilt Maintenance-free sealed Lead-Acid battery
Typical recharge time  6hours
Battery Charge Power (Watts)  18Watts
Battery Volt-Amp-Hour Capacity  108
Control panel  LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm  Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Maximum Height  130MM
Maximum Width  220MM
Maximum Depth  290MM
Net Weight  7.8KG
Operating Temperature  0 - 40 °C
Operating Relative Humidity  0 - 95 %
