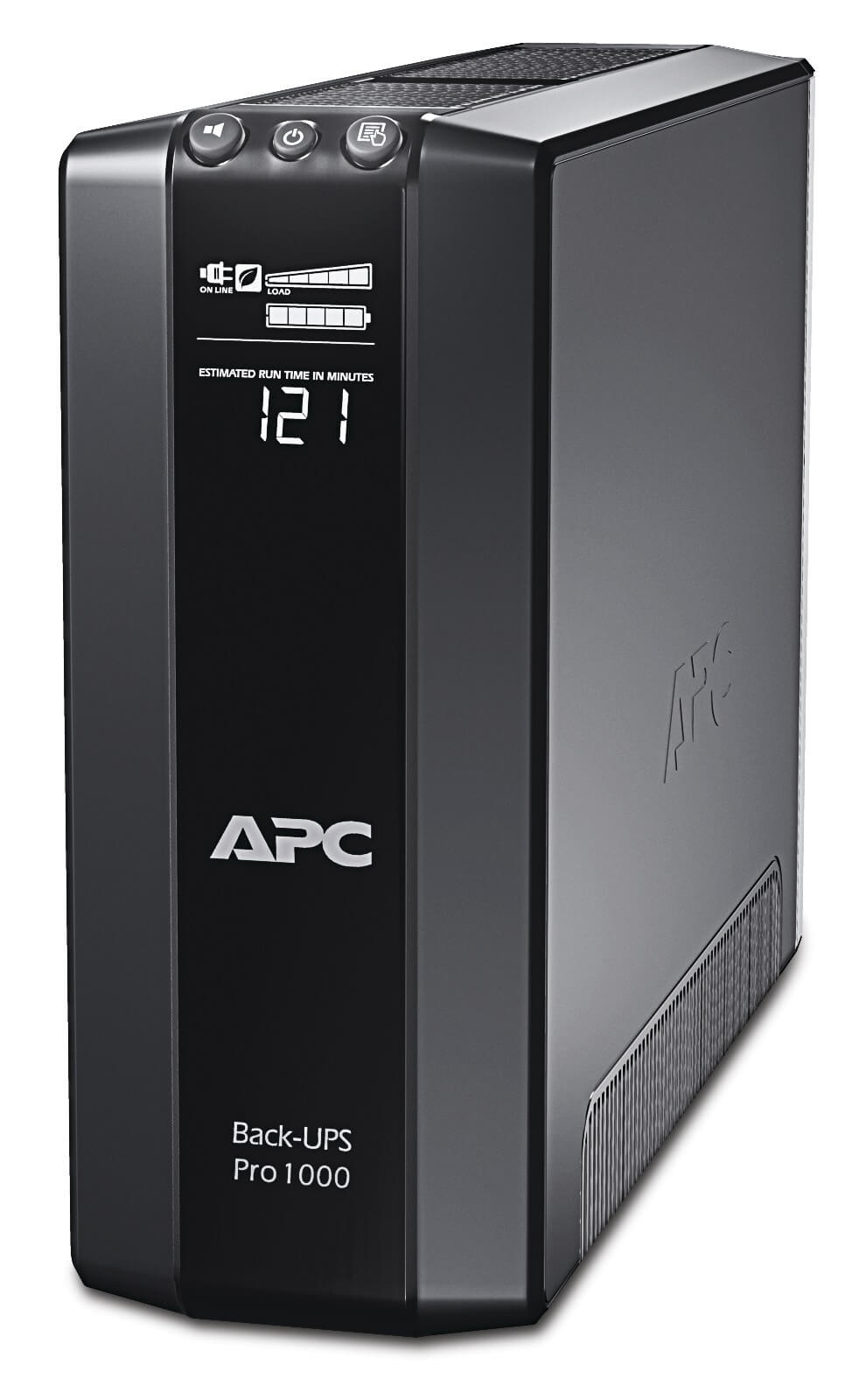

APC BACK-UPS Pro 1000 UPS LCD | BR1000G-IN 1KVA UPS

  • Model : BR1000G-IN
  • Power Rating : 1000VA
  • Output power Max : 600Watts
  • UPS Type  : Line Interactive
  • Waveform : Stepped Sine wave
  • Battery Type  : Built-in Battery
  • Backup Time  : 6.5Min to 90Min
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : India 3-pin 6A Cord
  • Output Connections  : India 5-pin Sockets
  • Application  : Computers and Electronics
  • Warranty  : 2 years repair or replacement

BR1000G-IN Features


  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Battery replacement without tools
    Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Building Wiring Fault Indicator
    This LED informs users of potentially dangerous wiring problems in the wall circuit.
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Power-saving outlets
    Automatically cuts power to idle equipment to conserve electricity.
  • Resettable circuit breaker
    Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

BR1000G-IN Technical Specifications


Power Rating  1000VA
Max Configurable Power (Watts)  600Watts
Output Frequency (sync to mains)  47 - 63 Hz
Topology  Line Interactive
Output Waveform type  Stepped approximation to a sinewave
Nominal Input Voltage
 230V AC
Input frequency
 47 - 63 Hz
Input voltage range for mains  150 - 280 Vac
Nominal Output Voltage  230V AC
Battery Type
 RBC144 - Inbuilt Maintenance-free sealed Lead-Acid battery
Typical recharge time  7.4hours
Battery Charge Power (Watts)  29Watts
Battery Volt-Amp-Hour Capacity  216
Control panel  Multi-function LCD status and control console
Audible Alarm  Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Maximum Height  301MM
Maximum Width  114MM
Maximum Depth  382MM
Net Weight  11.35KG
Operating Temperature  0 - 40 °C
Operating Relative Humidity  0 - 95 %
