APC BACK-UPS 2000VA UPS | BX2000UXI 2KVA

  • Model : BX2000UXI
  • Power Rating : 2000VA
  • Output power Max : 1200Watts
  • UPS Type  : Line Interactive
  • Waveform : Stepped Sine wave
  • Battery Type  : External Battery
  • Backup Time  : Long Backup based on Battery
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : India 3-pin Power Cord
  • Output Connections  : 3Way Connector
  • Application  : Computers and Electronics
  • Warranty  :  2 years repair or replacement

BX2000UXI Features


  • Audible alarms
    Provides notification of changing utility power and UPS power conditions
  • LED status display
    Quickly understand unit and power status with visual indicators.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Surge only outlets
    Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
  • Battery and surge protected outlets
    Back up and protect your hardware and data during power outages, surges and spikes.
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

BX2000UXI Technical Specifications


Power Rating  2000VA (2KVA)
Max Configurable Power (Watts)  1200Watts
Output Frequency (sync to mains)  40 - 70 Hz
Topology  Line Interactive
Output Waveform type  Stepped approximation to a sinewave
Nominal Input Voltage
 230V AC
Input frequency
 40 - 70 Hz
Input voltage range for mains  140 - 300 Vac
Nominal Output Voltage  230V AC (190 - 256 Vac)
Battery Type
 External battery model Flooded / SMF compatible
Battery Voltage   24V DC Double Battery
Charge current  5 A / 10 A / 15 A / 20 A (selectable)
Transfer Time   8ms typical : 12ms maximum
Control panel  LED Status display with On Line : On Battery
Audible Alarm  Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Maximum Height  220 mm
Maximum Width  145 mm
Maximum Depth  392 mm
Net Weight  13.4KG
Operating Temperature  0 - 40 °C
Operating Relative Humidity  0 - 95 %

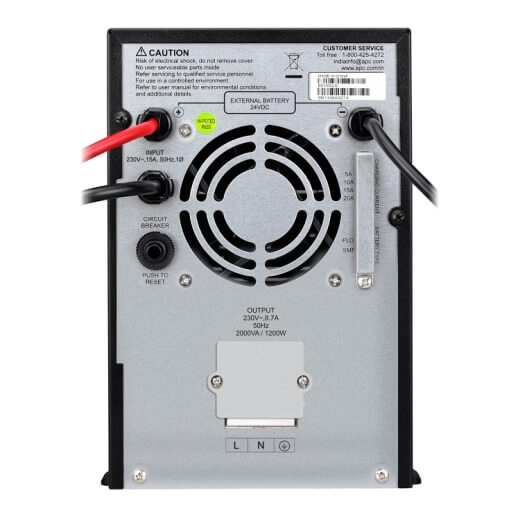

Rear Side Image :
