- Model : BX1100C-IN
- Power Rating : 1100VA
- Output power Max : 660Watts
- UPS Type : Line Interactive
- Waveform : Stepped Sine wave
- Battery Type : Built-in Battery
- Backup Time : 3Min to 90Min
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V
- Input Connections : India 3-pin 6A Cord
- Output Connections : India 5-pin Sockets
- Application : Computers and Electronics
- Warranty : 1 year repair or replacement
BX1100C-IN Features
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
- Battery Saver
Extends battery life by preventing unnecessary discharges while the UPS is on battery.
- Boost and Trim Automatic Voltage Regulation (AVR)
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
- Generator compatibility
Allows you to recharge your battery while on generator power.
- LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
BX1100C-IN Technical Specifications
|

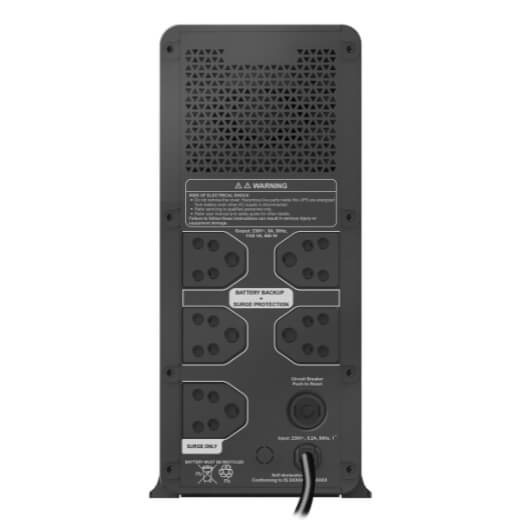

Rear Side Image :
