APC SRV2KL-IN 2KVA Online Easy UPS-Rack Mount

  • Model : SRV2KL-IN
  • Power Rating : 2000VA (2KVA)
  • Output power Max : 1600Watts
  • UPS Type  : Online
  • Waveform : Sine wave
  • Battery Type  : Built-in Battery
  • Backup   : 2 Min to 30 Min
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : India 3-pin 16A Cord
  • Output Connections  : India 5Pin Socket
  • Application  : Server & Computers Load
  • Warranty  : 2 years repair or replacement

2KVA UPS Unboxing Video :




2KVA SRV2KL-IN Features


  • Double Conversion Online Sine Wave Output Power Capacity - 1600W / 2000VA
  • Nominal Output Voltage 220/230/240VAC
  • Output Frequency Range - 60Hz or 50Hz +/- 0.1 Hz
  • Output Connections (4) 5-Pin Socket
  • Input Voltage Range - 110-300@ 60% Load Input Frequency Range - 40Hz - 70Hz
  • Input Connection - IEC C14
  • Battery Type - 12V / 9AH X 4
  • Typical Recharge Time 4 Hours to Recover to 90% Capacity
  • BACKUP - Half Load Run Time - 10 Min, Full Load Run Time - 3 Min
  • DB-9 RS-232 Supports Windows 2000/ 2003/XP/Vista/2008/7/8 Linux, Unix & MAC
  • Multi-Function LCD Status Control Panel Intelligent Slot - Mini Slot
    Surge Energy Rating 600Joules
  • Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Input power factor correction - Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intelligent SmartSlot - Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
  • LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Serial connection - Use your PC to access additional power protection and management features for your UPS via a serial port.
  • USB connection - Use your PC to access additional power protection and management features for your UPS via a USB Port.
  • High efficiency - High efficiency rates that remain stable even at lower operating power levels
  • Generator compatible - Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Input power factor correction - Minimizes installation costs by enabling the use of smaller generators and cabling.
  • SmartSlot - Customize UPS capabilities with management cards.
  • Management Software - Allows you to easily monitor your utility power and manage your UPS.

2KVA SRV2KL-IN Technical Specifications


Power Rating  2000VA (2KVA)
Max Configurable Power (Watts)  1600 Watts
Output Frequency (sync to mains)  50 Hz
Topology  Double conversion Online
Output Waveform type  Pure sine wave
Nominal Input Voltage
 230V AC
Input frequency
 40 - 70 Hz
Input voltage range for mains  110 - 285 (half load) V
Nominal Output Voltage  Configurable for 220 : 230 or 240 nominal output voltage
Battery Type
 48V, 9Ah 4Nos Inbuilt Maintenance-free sealed Lead-Acid battery
Control panel  Multi-function LCD status and control console
Audible Alarm  Audible and visible alarms prioritized by severity
Maximum Height  88.0 mm - 2U Rack
Maximum Width  438.0 mm
Maximum Depth  462.0 mm
Net Weight  18.2 kg
Operating Temperature  0 - 40 °C
Operating Relative Humidity  0 - 95 %

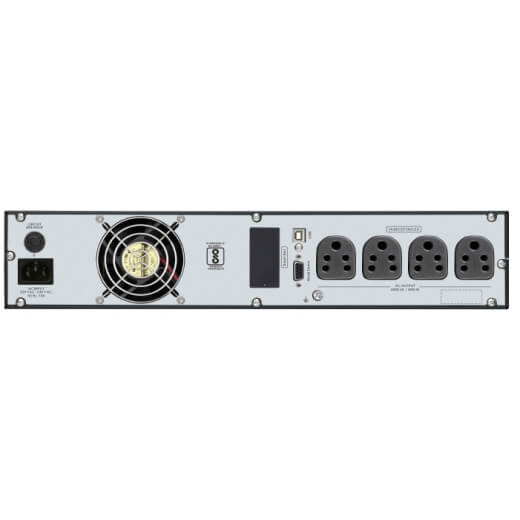

Rear Side Image :
