APC 40KVA Easy UPS 3-Phase | E3SUPS40KH

  • Model : E3SUPS40KH 3PHASE
  • Power Rating : 40000VA (40KVA)
  • Output power Max : 40000Watts
  • UPS Type  : Online
  • Waveform : Sine wave
  • Battery Type  : External Battery
  • Battery Volts  :  394V DC
  • No of Battery  : 12V battery - 32Nos
  • Nominal Output Voltage : 400V 3PH
  • Nominal Input Voltage : 400V 3PH
  • Input Connections : Terminal Block
  • Output Connections  : Terminal Block
  • Application  : Server & Computers Load
  • Warranty  : 1 year

EASY UPS 40KVA E3SUPS40KH Features- 3PHASE


  • Double Conversion Mode (upto 96%)
  • ECO Mode (99% Efficiency)
  • Common Battery under 1+1mode
  • Parallel upto 4 UPS
  • Conformal Coating on PCBA
  • In-built Replaceable Dust Filter
  • Operating Temperature Up To 40C
  • Output Power Capacity - 40.0 KW / 40.0 kVA Output Voltage THD - < 3% linear load
  • Overload Operation - 150% for 1 min 125% for 10 min
  • Bypass - Built-in Maintenance Bypass Maximum Input Current - 73 A
  • Input Frequency - 45 - 65 Hz
  • Input Total Harmonic Distortion - Less than 3% for full load
  • Interface Port(s) - E3S_Parallel
  • E3S_TempSensor
  • 20% Power as Charging Capacity
  • Mimic Panel Multi Language LCD Display (EPO Inbuilt)
  • RoHS Compliance
  • ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
  • Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
  • Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
  • Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
  • Easy to install fast - Quickly roll the compact and lightweight UPS into position.
  • Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!
  • Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
  • Replaceable dust filters - protect the UPS in harsh environments.
  • SNMP Card - Optional.

EASY UPS 40KVA E3SUPS40KH Technical Specifications - 3PHASE


Power Rating  40000VA (40KVA)
Max Configurable Power (Watts)  40000 Watts
Output Frequency (sync to mains)  50 Hz
Topology  Double conversion Online
Output Waveform type  Pure sine wave
Nominal Input Voltage
 400V 3PHASE
Input frequency
 45 - 65 Hz
Input voltage range for mains  404 - 477V
Nominal Output Voltage  400V 3PHASE
Battery Type
 No internal battery - uses external battery system
Control panel  Multi-function LCD status and control console
Power Factor  0.99
Maximum Height  770.0 mm
Maximum Width  250.0 mm
Maximum Depth  900.0 mm
Net Weight  70.0 kg
Operating Temperature  0 - 40 °C
Operating Relative Humidity  0 - 95 %

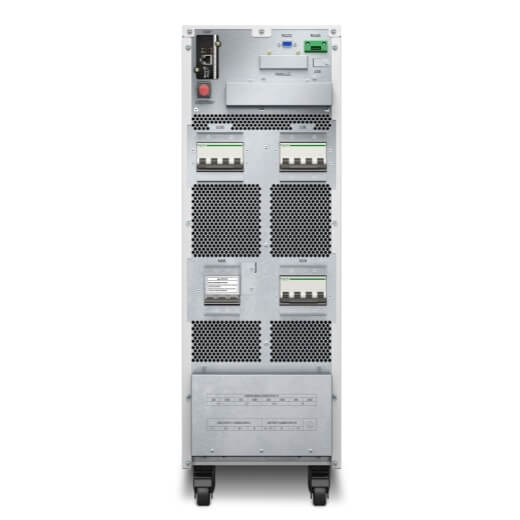

 Rear Side Image :
